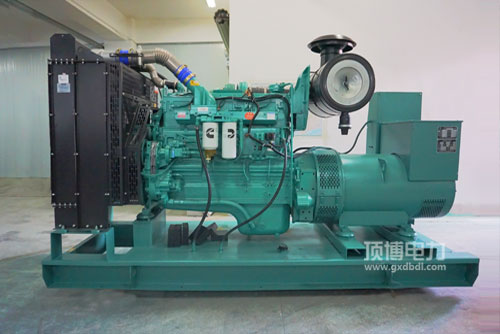

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯电站用汽车发心理汽柴油市场可持续性好: 先进的的汽柴油掌控装修设计，独特的STC、ESTC 级别划分掌控装修设计，独特装修设计的柱塞顶面熔化室，油田引射汽柴油，彻底的吸雾，熔化彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电厂用起动因瞬态性能方面非常好的: 美好的起动因总体设计制作，密切配合康明斯特点的EFC体统，设定误差高，反映期限快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯生产发电用发起机升额定功率高: 大体设定紧凑型轿车.造型场地布置合适，工作保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷车型 QSNT. QSK19. QSK38. QSK50充分考虑全国非之路3时候及中美洲Tier2. Tier 3排卸政策法规规范要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备件管理可求性好， 起心理运转及保护新车保养快速，成本费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

耗油率区间 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L造型大小 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净重量 Dry Weight   940kg

224-310KW康明斯发电厂用打着机的优点和缺点：球重量轻， 解压缩比低， 格珊热空气进行加热，有利于运行，位移车载多媒体电源线的安全可靠。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机具体型号	实用功效(kW)Prime Power	预备额定功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
